Aignep USA’s 01VL series pneumatic hand-actuated lever valves provide a high quality control solution for your pneumatic cylinders, components and operations. Actions available are 3/2, 5/2 and 5/3, the latter offered in closed, pressure and open centers. Port sizes are offered in 1/8, 1/4 and 1/2 inch NPT and BSPP threads. Flow rates are 740 NL/min for 1/8″ ports, 1200 NL/min for 1/4″ ports and 5000 NL/min for 1/2″ ports. All valves operate up to 145 psi working pressure. Durable NBR seals allow the valves to operate between 14 – 140 degrees F. The body is comprised of anodized and painted aluminum, where the spool is chemical nickel plated steel.
$114.95 Original price was: $114.95.$80.47Current price is: $80.47.
- Quality You Can Count On
- Control the delivery date and try to deliver it in the fastest time
- Unbeatable Quality Guaranteed
- Reliable Payments for Reliable Shopping

| Port Size | 1/2 in |
|---|---|
| Length | 5 1/2 in |
| Width | 2.5 in |
| Thread Type | NPT |
| Valve Type | 3/2 monostable air pilot |
| Temperature Rating | 176 F |

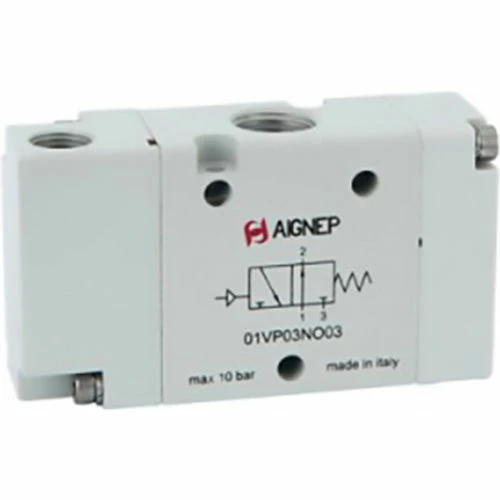

| Description | Pneumatic Pilot Spool Valve |
| Seal Type | NBR |
| Manufacturers Part Number | 01VP03NC05N |
| PSI | 145 psi |
| For Use With | Filtered and lubricated or non-lubricated compressed air |
| Brand | Aignep USA |
Be the first to review “Aignep USA 3/2 Normally Closed Single Air-Actuated Valve Pilot Spring Return1/2" NPTF Ports” Cancel reply
