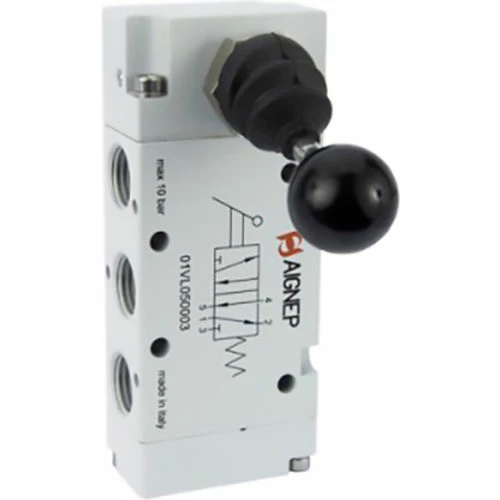

Aignep USA 5/3 Hand Lever Actuated Valve Spring Centered Closed Center 1/4" NPTF Ports

Aignep USA’s 01VL series pneumatic hand-actuated lever valves provide a high quality control solution for your pneumatic cylinders, components and operations. Actions available are 3/2, 5/2 and 5/3, the latter offered in closed, pressure and open centers. Port sizes are offered in 1/8, 1/4 and 1/2 inch NPT and BSPP threads. Flow rates are 740 NL/min for 1/8″ ports, 1200 NL/min for 1/4″ ports and 5000 NL/min for 1/2″ ports. All valves operate up to 145 psi working pressure. Durable NBR seals allow the valves to operate between 14 – 140 degrees F. The body is comprised of anodized and painted aluminum, where the spool is chemical nickel plated steel.
