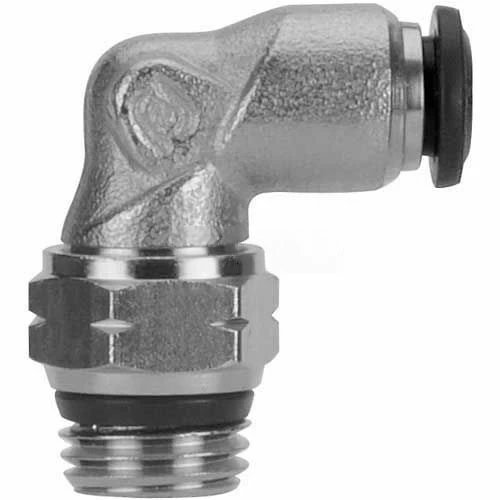

Name: Aignep USA AIGNEP Swivel Elbow 50110N-14-3/8, 14mm Tube x 3/8&quot; Swift-Fit Universal Thread - Pkg Qty 10
SKU: Aignep USA WBB665509
Availability: InStock

New

Aignep USA AIGNEP Swivel Elbow 50110N-14-3/8, 14mm Tube x 3/8" Swift-Fit Universal Thread - Pkg Qty 10

Original price was: $97.00.Current price is: $67.90.

SKU: Aignep USA WBB665509 Categories: Fittings, Hoses & Connectors, Pneumatic System Components Tags: Aignep USA, Motors & Power Transmission, NBR 70, Nickel Plated Brass, Nickel Plated Brass or Composite, Nylon, Polyethylene, Polyurethane,Copper, Push-To-Connect Fittings, Vacuum-250 PSI

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

AIGNEP Swivel Elbow 50110N-14-3/8, 14mm Tube x 3/8″ Swift-Fit Universal Thread

Simplify the world of push-to-connect fittings with Alpha Swift-Fit, one fitting that works with either tapered or straight threads. If you have a pipe thread, you can count on Swift-Fit to seal without leaking. Port size can easily be identified but what about that thread pitch

Nominal Flow Diameter	4mm in
Lip Seal	NBR 70
Sleeve	Nickel Plated Brass
Media	Compressed Air, Inert Gases
Seal Type	Buna
Manufacturers Part Number	50110N-14-3/8
Package Quantity	3
Safety Ring Material	Technopolymer
Temperature Rating	0-160° F
Gripper Collet Material	Stainless Steel
Style	Swift-Fit
Weight	0.185 lbs
Pressure Rating	Vacuum-250 PSI
Thrust Ring	Nickel Plated Brass or Composite
Body Material	Nickel Plated Brass
Type	Push-To-Connect Fittings
Tube Material Compatibility	Nylon, Polyethylene, Polyurethane,Copper
Thread Seal	NBR 70
Length	1-1/4 in
Thread	Universal in
Brand	Aignep USA
