Name: BI-TORQ 1/4&quot; 2-Pc Brass NPT Ball Valve W/Dbl. Acting Pneum. Actuator
SKU: Bi-Torq WBB438774
Availability: InStock

New

BI-TORQ 1/4" 2-Pc Brass NPT Ball Valve W/Dbl. Acting Pneum. Actuator

Original price was: $179.95.Current price is: $97.99.

SKU: Bi-Torq WBB438774 Categories: Automated Ball Valves, Pneumatic System Components, Valves Tags: Ball, Bi-Torq, Brass, Brass Valve, Aluminum Actuator, Double Acting, Motors & Power Transmission, NPT, Pneumatic

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

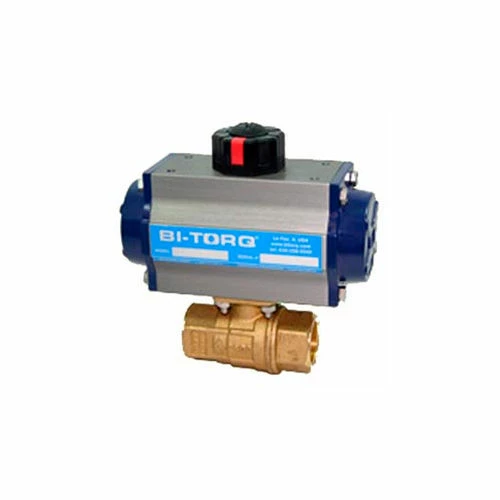

1/4″ 2-Pc Brass NPT Ball Valve W/Dbl. Acting Pneum. Actuator

The BI-TORQ IP-2P-02-32-DA series 1/4″ NPT (threaded) ball valve features a full port brass ball valve with a pressure rating to 600 PSI and a temperature rating of +297°F. TFE seats and Viton seals are compatible with a wide range of industries and media type. This version comes complete with a PN-32-DA double acting (air-to-open, air-to-close) pneumatic actuator sized for 80PSI air supply.

Valve Size	1/4 in
Height	4-49/64 in
Length	4-21/64 in
Width	1.77 in
End Connections	NPT
Actuator	Pneumatic
Body Material	BRASS
Type of Actuation	Double-Acting
Material	Brass Valve, Aluminum Actuator
Valve Type	Ball
Actuated or Manual	Actuated
Number of Ports	2-Way
Package Quantity	1
Manufacturers Part Number	IP-2P-02-32-DA
Brand	Bi-Torq
