Name: BI-TORQ 1/4&quot; 3-Way T-Port Brass NPT Ball Valve W/Dbl. Acting Pneum. Actuator
SKU: Bi-Torq WBB438877
Availability: InStock

New

BI-TORQ 1/4" 3-Way T-Port Brass NPT Ball Valve W/Dbl. Acting Pneum. Actuator

Original price was: $215.95.Current price is: $98.99.

SKU: Bi-Torq WBB438877 Categories: Automated Ball Valves, Pneumatic System Components, Valves Tags: Ball, Bi-Torq, Brass, Double Acting, Motors & Power Transmission, NPT, Pneumatic, Valve: Brass; Actuator: Aluminum

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

1/4″ 3-Way T-Port Brass NPT Ball Valve W/Dbl. Acting Pneum. Actuator

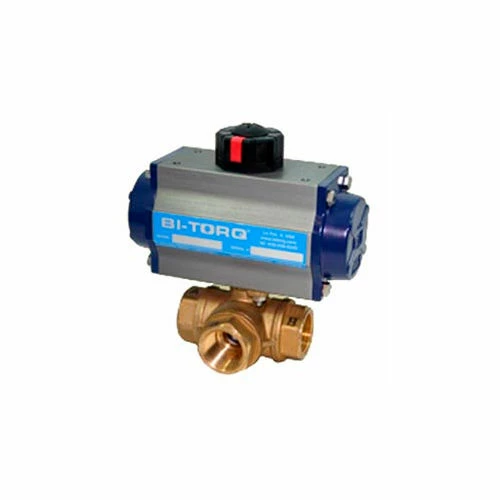

The BI-TORQ IP-3WT-02-32-DA series 1/4″ NPT (threaded) ball valve features a 3-way (multi-port) brass ball valve with an T-port configuration. The valve has a pressure rating to 600 PSI and a temperature rating of +297°F. TFE seats and Viton seals are compatible with a wide range of industries and media type. This version comes complete with a PN-32-DA double acting (air-to-open, air-to-close) pneumatic actuator sized for 80PSI air supply.

Valve Size	1/4 in
Height	3-31/32 in
Length	4-21/64 in
Width	1.77 in
End Connections	NPT
Actuator	Pneumatic
Body Material	BRASS
Type of Actuation	Double-Acting
Material	Valve: Brass; Actuator: Aluminum
Valve Type	Ball
Actuated or Manual	Actuated
Number of Ports	3-Way
Package Quantity	1
Manufacturers Part Number	IP-3WT-02-32-DA
Brand	Bi-Torq
