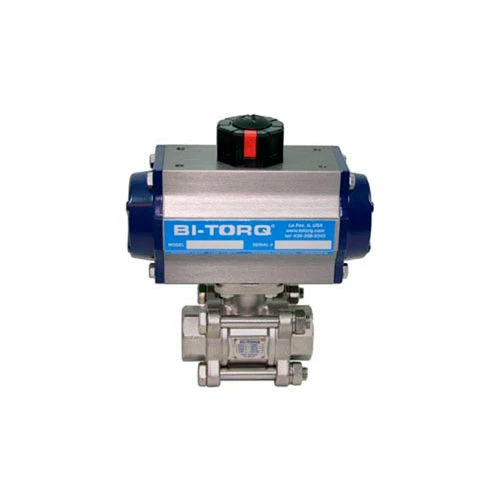

Name: BI-TORQ 1&quot; 3-Pc SS NPT Ball Valve W/Spring Ret. Pneum. Actuator
SKU: Bi-Torq WBB438634
Availability: InStock

New

BI-TORQ 1" 3-Pc SS NPT Ball Valve W/Spring Ret. Pneum. Actuator

Original price was: $303.95.Current price is: $98.99.

SKU: Bi-Torq WBB438634 Categories: Automated Ball Valves, Pneumatic System Components, Valves Tags: Ball, Bi-Torq, Motors & Power Transmission, NPT, Pneumatic, Spring-Return, SS, Valve: 316SS; Actuator: Anodized Aluminum

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

1″ 3-Pc SS NPT Ball Valve W/Spring Ret. Pneum. Actuator

The BI-TORQ IS-3PT-10-63-SR is a pneumatically-actuated 1″ full port SS ball valve with NPT (threaded) ends. The valve has a pressure rating to 1000 PSI and a temperature rating from 0°F to +450°F. RTFE seats and TFE seals are compatible with a wide range of industries and media type. The 3-piece design allows for easy maintenance without removing the end pieces from the pipeline. This version comes complete with a PN-63-SR spring return (air to open, spring to close) anodized aluminum pneumatic actuator sized for 80PSI air supply.

Valve Size	1 in
Height	8-9/64 in
Length	6-3/8 in
Width	3.17 in
End Connections	NPT
Actuator	Pneumatic
Body Material	SS
Type of Actuation	Spring-Return
Material	Valve: 316SS; Actuator: Anodized Aluminum
Valve Type	Ball
Actuated or Manual	Actuated
Number of Ports	3-Way
Package Quantity	1
Manufacturers Part Number	IS-3PT-10-63-SR
Brand	Bi-Torq
