Name: BI-TORQ 2&quot; 3-Way T-Port PVC Ball Valve W/Dbl. Acting Pneum. Actuator
SKU: Bi-Torq WBB438753
Availability: InStock

New

BI-TORQ 2" 3-Way T-Port PVC Ball Valve W/Dbl. Acting Pneum. Actuator

Original price was: $587.00.Current price is: $97.99.

SKU: Bi-Torq WBB438753 Categories: Automated Ball Valves, Pneumatic System Components, Valves Tags: Ball, Bi-Torq, Double Acting, Motors & Power Transmission, Pneumatic, PVC, PVC, Aluminum, Socket

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

2″ 3-Way T-Port PVC Ball Valve W/Dbl. Acting Pneum. Actuator

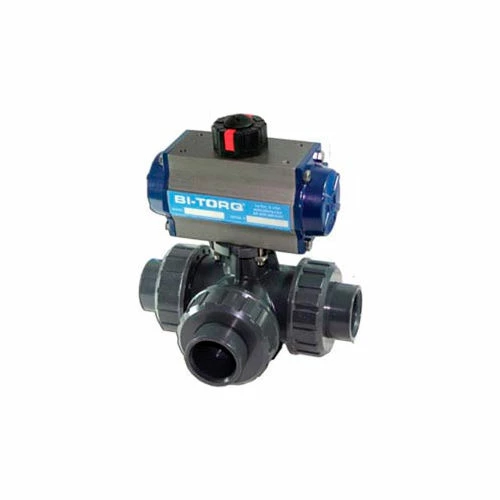

The BI-TORQ IC-3WT-20-52-DA series 2″ 3-way T-port ball valve comes complete with both threaded and socket end options. This version features a full port, true union PVC ball valve with TFE seats and EPDM seals. (Options for both BUNA and Viton seals are available for media compatibility.) The valve has a pressure rating to 150PSI at a temperature rating of +73°F. The PVC body is suitable for chemical, industrial, irrigation, or pool and spa applications .This version comes complete with a PN-52-DA double acting (air-to-open, air to close) pneumatic actuator sized for 80PSI air supply.

Valve Size	2 in
Height	7-13/16 in
Diameter	2 in
Length	5-1/2 in
Width	2.8 in
End Connections	Socket
Actuator	Pneumatic
Body Material	PVC
Type of Actuation	Double-Acting
Material	PVC, Aluminum
Valve Type	Ball
Actuated or Manual	Actuated
Number of Ports	3-Way
Package Quantity	1
Manufacturers Part Number	IC-3WT-20-52-DA
Brand	Bi-Torq
