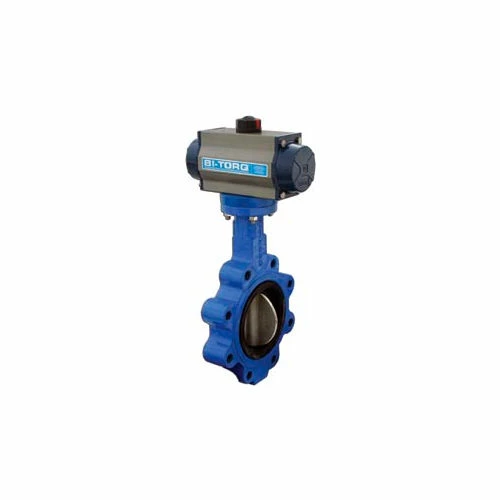

Name: BI-TORQ 2&quot; Wafer Style Butterfly Valve W/ Viton Seals and Spring Return Pneum. Actuator
SKU: Bi-Torq WBB438279
Availability: InStock

New

BI-TORQ 2" Wafer Style Butterfly Valve W/ Viton Seals and Spring Return Pneum. Actuator

Original price was: $373.95.Current price is: $98.99.

SKU: Bi-Torq WBB438279 Categories: Automated Butterfly Valves, Pneumatic System Components, Valves Tags: 1, Actuated, Bi-Torq, Butterfly, Cast Iron, SS, Aluminum, Motors & Power Transmission, Pneumatic, Spring-Return

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

2″ Wafer Style Butterfly Valve W/ Viton Seals and Spring Return Pneumatic Actuator

The BI-TORQ BY-WV-2-20-75-SR series 2″ wafer style automated butterfly valve features a standard cast iron body, SS disc and Viton seal. The valve has a pressure rating to 225 PSI (thru 8″) and a temperature rating of +350°F. The Viton seals are compatible with a wide range of industries and media type, especially high temperature applications. This version comes complete with a PN-75-SR spring return (air-to-open, spring to fail close) pneumatic actuator sized for 80PSI air supply.

Valve Size	2 in
Height	9-55/64 in
Length	8-5/32 in
Width	4-1/64 in
Actuator	Pneumatic
Actuation Type	Spring Return
Material	Cast Iron, SS, Aluminum
Valve Type	Butterfly
Actuated or Manual	Actuated
Package Quantity	1
Manufacturers Part Number	BY-WV-2-20-75-SR
Respirator Connection Type	Wafer
Brand	Bi-Torq
