Name: BI-TORQ 3/4&quot; 3-Pc SS NPT Ball Valve W/Spring Ret. Pneum. Actuator
SKU: Bi-Torq WBB438670
Availability: InStock

New

BI-TORQ 3/4" 3-Pc SS NPT Ball Valve W/Spring Ret. Pneum. Actuator

Original price was: $258.95.Current price is: $98.99.

SKU: Bi-Torq WBB438670 Categories: Automated Ball Valves, Pneumatic System Components, Valves Tags: Ball, Bi-Torq, Motors & Power Transmission, NPT, Pneumatic, Spring-Return, SS, Valve: 316SS; Actuator: Anodized Aluminum

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

3/4″ 3-Pc SS NPT Ball Valve W/Spring Ret. Pneum. Actuator

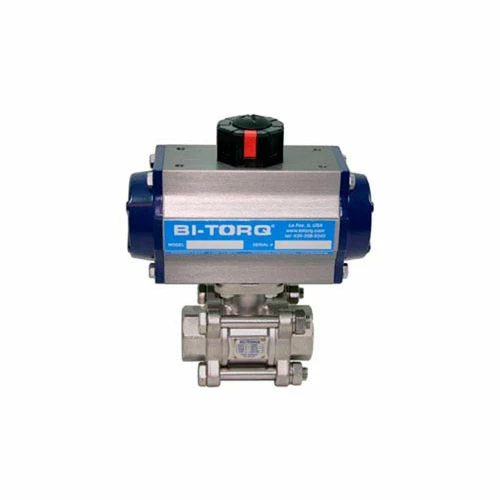

The BI-TORQ IS-3PT-07-52-SR is a pneumatically-actuated 3/4″ full port SS ball valve with NPT (threaded) ends. The valve has a pressure rating to 1000 PSI and a temperature rating from 0°F to +450°F. RTFE seats and TFE seals are compatible with a wide range of industries and media type. The 3-piece design allows for easy maintenance without removing the end pieces from the pipeline. This version comes complete with a PN-52-SR spring return (air to open, spring to close) anodized aluminum pneumatic actuator sized for 80PSI air supply.

Valve Size	3/4 in
Height	8-13/32 in
Length	6-7/8 in
Width	4.25 in
End Connections	NPT
Actuator	Pneumatic
Body Material	SS
Type of Actuation	Spring-Return
Material	Valve: 316SS; Actuator: Anodized Aluminum
Valve Type	Ball
Actuated or Manual	Actuated
Number of Ports	2-Way
Package Quantity	1
Manufacturers Part Number	IS-3PT-07-52-SR
Brand	Bi-Torq
