Name: BI-TORQ 3/8&quot; 2-Pc Brass NPT Ball Valve W/NEMA 4 115VAC
SKU: Bi-Torq WBB438797
Availability: InStock

New

BI-TORQ 3/8" 2-Pc Brass NPT Ball Valve W/NEMA 4 115VAC

Original price was: $368.95.Current price is: $91.99.

SKU: Bi-Torq WBB438797 Categories: Automated Ball Valves, Pneumatic System Components, Valves Tags: Ball, Bi-Torq, Brass, Brass Valve, Aluminum Actuator, Electric, Motors & Power Transmission, NPT, On/Off

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

3/8″ 2-Pc Brass NPT Ball Valve W/NEMA 4 115VAC

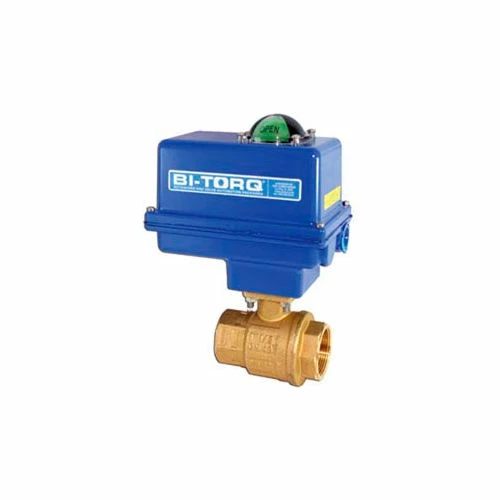

The BI-TORQ IP-2P-03-100-E-A-4 series 3/8″ NPT (threaded) ball valve features a full port brass ball valve with a pressure rating to 600 PSI and a temperature rating of +297°F. TFE seats and Viton seals are compatible with a wide range of industries and media type. This version comes complete with a BI-100-A-4 115VAC electric actuator with a NEMA 4 powder coated enclosure. A high-visibility dome and limit switches provide position indication. The actuator is rated from 0°F to +150°F with temperature controls available for extreme environments.

Valve Size	3/8 in
Height	4-13/64 in
Length	4-21/64 in
Width	1.77 in
End Connections	NPT
Actuator	Electric
Body Material	BRASS
Type of Actuation	On-Off
Material	Brass Valve, Aluminum Actuator
Valve Type	Ball
Actuated or Manual	Actuated
Number of Ports	2-Way
Package Quantity	1
Manufacturers Part Number	IP-2P-03-100-E-A-4
Brand	Bi-Torq
