Name: BI-TORQ 4&quot; Wafer Style Butterfly Valve W/ EPDM Seals and Dbl. Acting Pneum. Actuator
SKU: Bi-Torq WBB438351
Availability: InStock

New

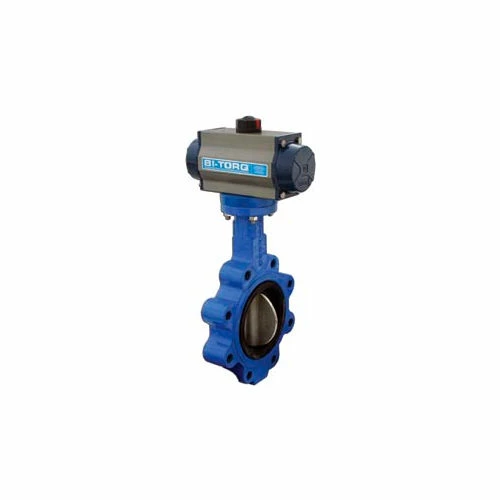

BI-TORQ 4" Wafer Style Butterfly Valve W/ EPDM Seals and Dbl. Acting Pneum. Actuator

Original price was: $352.95.Current price is: $98.99.

SKU: Bi-Torq WBB438351 Categories: Automated Butterfly Valves, Pneumatic System Components, Valves Tags: 1, Actuated, Bi-Torq, Butterfly, Cast Iron, SS, Aluminum, Double Acting, Motors & Power Transmission, Pneumatic

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

4″ Wafer Style Butterfly Valve W/ EPDM Seals and Dbl. Acting Pneum. Actuator

The BI-TORQ BY-WE-2-40-63-DA series 4″ wafer style automated butterfly valve features a standard cast iron body, SS disc and EPDM seal. The valve has a pressure rating to 225 PSI (thru 8″) and a temperature rating of +275°F. The EPDM seals are compatible with a wide range of industries and media type, especially high temperature applications. This version comes complete with a PN-63-DA double acting (air-to-open, air-to-close) pneumatic actuator sized for 80PSI air supply.

Valve Size	4 in
Height	11-53/64 in
Length	6-3/8 in
Width	6-5/16 in
Actuator	Pneumatic
Actuation Type	Double Acting
Material	Cast Iron, SS, Aluminum
Valve Type	Butterfly
Actuated or Manual	Actuated
Package Quantity	1
Manufacturers Part Number	BY-WE-2-40-63-DA
Respirator Connection Type	Wafer
Brand	Bi-Torq
