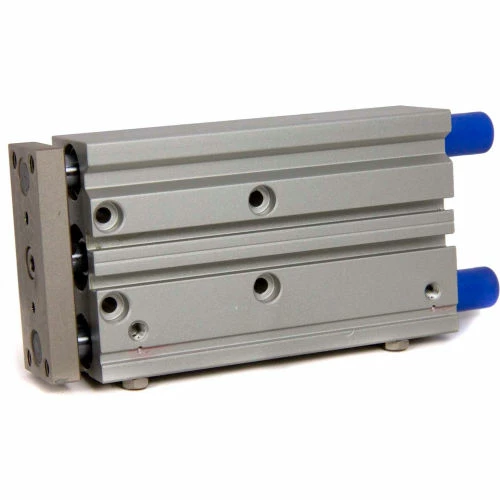

Name: Bimba-Mead Air Linear Guided Slide MTCL-25X100-S-T, Ball Bearing, 1/8&quot; NPT, 25mm Bore, 100mm Stroke
SKU: Bimba-Mead WBB1016229
Availability: InStock

New

Bimba-Mead Air Linear Guided Slide MTCL-25X100-S-T, Ball Bearing, 1/8" NPT, 25mm Bore, 100mm Stroke

Original price was: $506.00.Current price is: $91.99.

SKU: Bimba-Mead WBB1016229 Categories: Cylinders, Pneumatic System Components Tags: 18 to 142 psi, 213 psi, 23 to 158 °F, Air (Clean/Dry), Bimba-Mead, Motors & Power Transmission, MTCL, Not Required

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

Bimba-Mead Air Linear Guided Slide MTCL-25X100-S-T, Ball Bearing, 1/8 NPT, 25mm Bore, 100mm Stroke

MFD’s Extruded Thruster is a rugged, guided actuator with a cylinder integral to the thruster block. The sleek body incorporates a groove for switch mounting for a clean, space-efficient package. The thrusters can be mounted with screws from the top, bottom, or base or by using T-slots on the bottom. Internal linear ball bushings are ideal superior performance in applications where higher speed and alignment are critical.

Features

1/8 NPT Port Size
Lubrication Not Required
213 Proof Pressure PSI
18 to 142 Pressure Range PSI
23 to 158°F Temperature Range
Double Acting
Fluid Air (Clean/Dry)
Bumper Cushion Type
± 0.07° Non-Rotate Tolerance
25mm Cylinder Bore
100mm Cylinder Stroke
Ball Bearing Guided Style

Cylinder Stroke	100mm
Port Size	1/8 NPT in
Cylinder Bore	25mm in
Series	MTCL
Proof Pressure	213 psi
Pressure Range	18 to 142 psi
Lubrication	Not Required
Temperature Range	23 to 158 °F
Fluid	Air (Clean/Dry)
Action	Double Acting
Cushion Type	Bumper
Description	Air Linear Guided Slide
Manufacturers Part Number	MTCL-25X100-S-T
Non Rotate Tolerance	± 0.07°
Guided Style	Ball Bearing
Brand	Bimba-Mead
