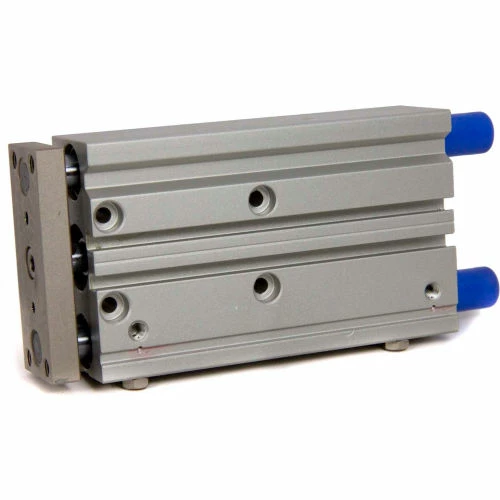

Name: Bimba-Mead Air Linear Guided Slide MTCM-16X20-S-T, Bronze BRG, M5X0.8 Port, 16mm Bore, 20mm Stroke
SKU: Bimba-Mead WBB1016210
Availability: InStock

New

Bimba-Mead Air Linear Guided Slide MTCM-16X20-S-T, Bronze BRG, M5X0.8 Port, 16mm Bore, 20mm Stroke

Original price was: $210.95.Current price is: $97.99.

SKU: Bimba-Mead WBB1016210 Categories: Cylinders, Pneumatic System Components Tags: 18 to 142 psi, 213 psi, 23 to 158 °F, Air (Clean/Dry), Bimba-Mead, Motors & Power Transmission, MTCM, Not Required

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

Bimba-Mead Air Linear Guided Slide MTCM-16X20-S-T, Bronze BRG, M5X0.8 Port, 16mm Bore, 20mm Stroke

MFD’s Extruded Thruster is a rugged, guided actuator with a cylinder integral to the thruster block. The sleek body incorporates a groove for switch mounting for a clean, space-efficient package. The thrusters can be mounted with screws from the top, bottom, or base or by using T-slots on the bottom. Internal bronze guide bearings are ideal superior performance in applications with higher side loads and moments.

Features

M5X0.8 Port Size
Lubrication Not Required
213 Proof Pressure PSI
18 to 142 Pressure Range PSI
23 to 158°F Temperature Range
Double Acting
Fluid Air (Clean/Dry)
Bumper Cushion Type
± 0.10° Non-Rotate Tolerance
16mm Cylinder Bore
20mm Cylinder Stroke
Bronze Bearing Guided Style

Cylinder Stroke	20mm
Port Size	M5X0.8 in
Cylinder Bore	16mm in
Series	MTCM
Proof Pressure	213 psi
Pressure Range	18 to 142 psi
Lubrication	Not Required
Temperature Range	23 to 158 °F
Fluid	Air (Clean/Dry)
Action	Double Acting
Cushion Type	Bumper
Description	Air Linear Guided Slide
Manufacturers Part Number	MTCM-16X20-S-T
Non Rotate Tolerance	± 0.10°
Guided Style	Bronze Bearing
Brand	Bimba-Mead
