Name: Bimba-Mead Foot Pedal Valve M4F210-08-G, 5 Port, 2 Pos, Direct Acting W/Guard, 1/4&quot; NPT
SKU: Bimba-Mead WBB571689
Availability: InStock

New

Bimba-Mead Foot Pedal Valve M4F210-08-G, 5 Port, 2 Pos, Direct Acting W/Guard, 1/4" NPT

Original price was: $60.95.Current price is: $42.67.

SKU: Bimba-Mead WBB571689 Categories: Directional Control Valves, Pneumatic System Components, Valves Tags: 0 to 120 PSI psi, 23 to 140 °F, 5 Ports - 2 Position, Air, Bimba-Mead, M4F210-08-G, Motors & Power Transmission, Not Required

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

Bimba-Mead Foot Pedal Valve M4F210-08-G, 5 Port, 2 Pos, Direct Acting W/Guard, 1/4″ NPT

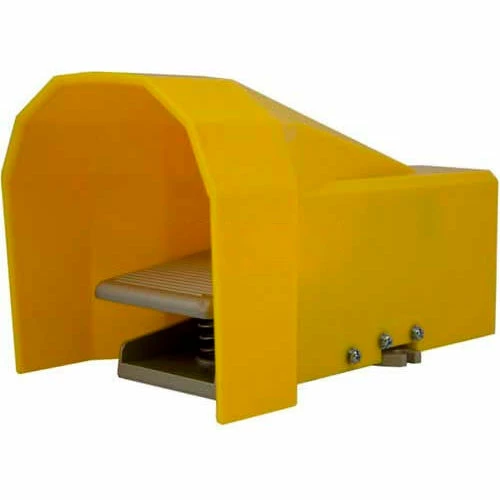

M4F210-08-G foot pedal direct acting valves are 4-way, 1/4 in NPT port, spool style valve, provide a 2-position, spring return operation. The M4F210-08-G comes with a high strength plastic guard.

Port Size	1/4 NPT in
Height	5-1/4 in
Length	9-21/32 in
Width	5-5/16 in
Temperature Range	23 to 140 °F
Fluid	Air
Type	5 Ports – 2 Position
Manufacturers Part Number	M4F210-08-G
Lubrication	Not Required
Pressure	0 to 120 PSI psi
Brand	Bimba-Mead
