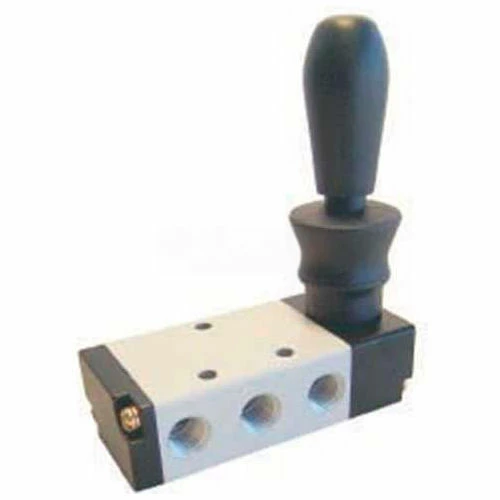

Name: Bimba-Mead Hand Lever Valve M4H310-08, 5 Port, 2 Pos, Direct Acting Hand Lever Valve, 1/4&quot; NPT
SKU: Bimba-Mead WBB571801
Availability: InStock

New

Bimba-Mead Hand Lever Valve M4H310-08, 5 Port, 2 Pos, Direct Acting Hand Lever Valve, 1/4" NPT

Original price was: $49.95.Current price is: $34.97.

SKU: Bimba-Mead WBB571801 Categories: Directional Control Valves, Pneumatic System Components, Valves Tags: 0 to 120 PSI psi, 23 to 140 °F, 5 Ports - 2 Position - Detented, Air, Bimba-Mead, Direct Acting Hand Lever, Motors & Power Transmission, Not Required

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

Bimba-Mead Hand Lever Valve M4H310-08, 5 Port, 2 Pos, Direct Acting Hand Lever Valve, 1/4″ NPT

M4H310-08 hand lever direct acting valves are 4-way, 1/4 in NPT port, spool style valve, provide a 2-position, manual return operation. The M4H310-08 is a manual operation stand alone valve with smooth actuation and reliable orientation. Its multi mounting hole configuration makes it convenient to install and apply.

Port Size	1/4 NPT in
Height	3-29/32 in
Length	3-41/64 in
Width	1-37/64 in
Type	5 Ports – 2 Position – Detented
Lubrication	Not Required
Pressure	0 to 120 PSI psi
Actuation	Direct Acting Hand Lever
Temperature Range	23 to 140 °F
Fluid	Air
Manufacturers Part Number	M4H310-08
Flow Coefficient	Cv = 1.39
Brand	Bimba-Mead
