Bimba-Mead Hand Lever Valve M4HV330-08-S, 4 Port, 3 Pos, 1/4" NPT, Closed Center

Original price was: $36.95.Current price is: $25.87.

SKU: Bimba-Mead WBB571782 Categories: Directional Control Valves, Pneumatic System Components, Valves Tags: 0 to 120 PSI psi, 23 to 145 °F, 4 Ports - 3 Position, Closed Center Detented, 90°, Air, Bimba-Mead, Motors & Power Transmission, Not Required

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

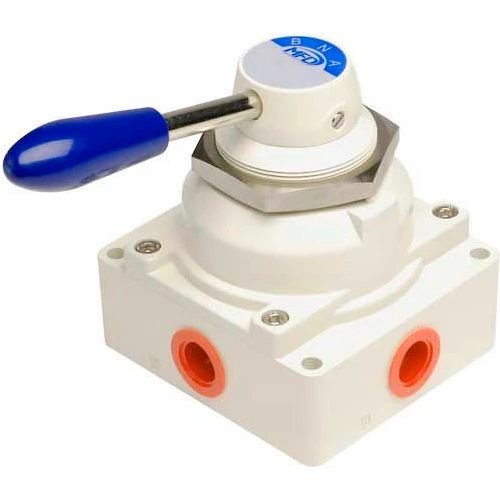

Bimba-Mead Hand Lever Valve M4HV330-08-S, 4 Port, 3 Pos, 1/4″ NPT, Closed Center

M4HV330-08-S hand lever direct acting valves are 4-way, 1/4 in NPT port, provide a 3-position closed center, manual return operation. The M4HV330-08-S is a manual operation stand alone valve with smooth actuation and reliable orientation. The valve can be body or panel mount.

Port Size	1/4 NPT in
Height	4-3/32 in
Length	5-1/2 in
Width	2-29/32 in
Type	4 Ports – 3 Position, Closed Center Detented
Operating Angle	90°
Lubrication	Not Required
Pressure	0 to 120 PSI psi
Temperature Range	23 to 145 °F
Fluid	Air
Manufacturers Part Number	M4HV330-08-S
Flow Coefficient	Cv = 1.67
Brand	Bimba-Mead
