Name: Bimba-Mead Namur Direct Mount Solenoid Valve M4M320-08-24VDC, 5 Port, 2 Pos, Dbl, 1/4&quot; NPT, 24VDC
SKU: Bimba-Mead WBB571695
Availability: InStock

New

Bimba-Mead Namur Direct Mount Solenoid Valve M4M320-08-24VDC, 5 Port, 2 Pos, Dbl, 1/4" NPT, 24VDC

Original price was: $87.95.Current price is: $61.57.

SKU: Bimba-Mead WBB571695 Categories: Directional Control Valves, Pneumatic System Components, Valves Tags: 22 to 116 PSI psi, 5 Port 2 Position, Bimba-Mead, Class F, DIN / LED Connector, Internally Piloted, Motors & Power Transmission, Not Required

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

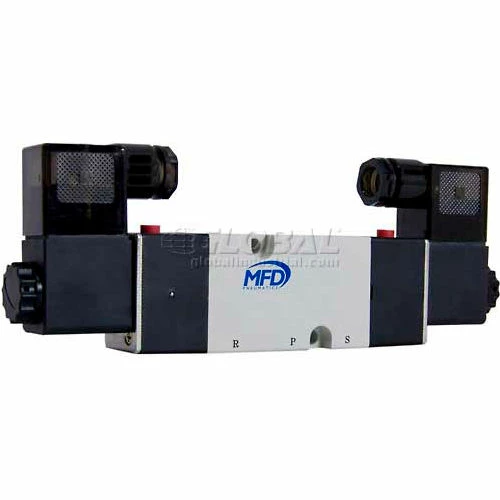

Bimba-Mead Namur Direct Mount Solenoid Valve M4M320-08-24VDC, 5 Port, 2 Pos, Dbl, 1/4″ NPT, 24VDC

M4M320-08 direct mount, internally piloted, double solenoid valves are 4-way, 1/4 in NPT port, spool style valves. Interface according to NAMUR standard. The DIN connector includes an LED indicator. Valves equipped with a turning manual override.

Port Size	1/4 NPT in
Protection	IP65 (DIN 40050)
Flow Coefficient	Cv = 1.40
Media	Air
Manufacturers Part Number	M4M320-08-24VDC
Voltage Range	±10% V
Temperature Range	23∼140 °F
Power Consumption	3.0 W W
Actuation	Internally Piloted
Height	2-23/32 in
Pressure	22 to 116 PSI psi
Lubrication	Not Required
Power Connection	DIN / LED Connector
Insulation Material	Class F
Type	5 Port 2 Position
Width	1-1/16 in
Length	7-1/2 in
Brand	Bimba-Mead
