Name: Bimba-Mead Pilot Solenoid Valve M4V110-06-120VAC, 5 Port, 2 Pos, Single, 1/8&quot; NPT, 120VAC, Cv=0.67
SKU: Bimba-Mead WBB571683
Availability: InStock

New

Bimba-Mead Pilot Solenoid Valve M4V110-06-120VAC, 5 Port, 2 Pos, Single, 1/8" NPT, 120VAC, Cv=0.67

Original price was: $49.95.Current price is: $34.97.

SKU: Bimba-Mead WBB571683 Categories: Directional Control Valves, Pneumatic System Components, Valves Tags: 22 to 120 PSI psi, 5 Port 2 Position, Bimba-Mead, Class F, DIN / LED Connector, Internally Piloted, Motors & Power Transmission, Not Required

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

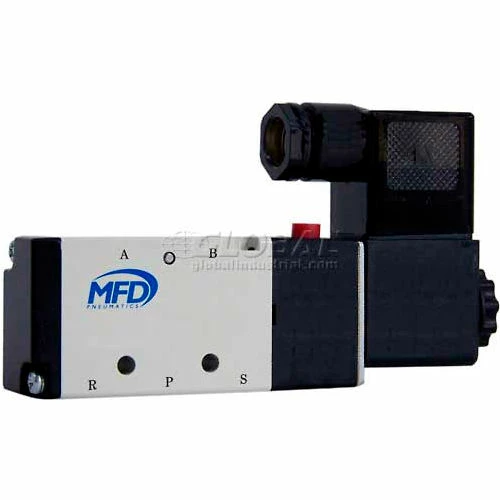

Bimba-Mead Pilot Solenoid Valve M4V110-06-120VAC, 5 Port, 2 Pos, Single, 1/8″ NPT, 120VAC, Cv=0.67

M4V110-06 piloted single solenoid valves are 4-way, 1/8 in NPT port, spool style valves. They are stackable and provide a 2-position, normally closed, spring return operation. The M4V110-06 series valves can be used in individual valve applications or multiple valves can be assembled together on a manifold to share supply air which simplifies the piping. They are compatible with the M100M series manifolds. The DIN connector includes an LED indicator. Valves equipped with a turning manual override.

Port Size	1/8 NPT in
Protection	IP65 (DIN 40050)
Flow Coefficient	Cv = 0.67
Media	Air
Manufacturers Part Number	M4V110-06-120VAC
Voltage Range	±10% V
Temperature Range	23∼140 °F
Power Consumption	2.5 VA W
Actuation	Internally Piloted
Height	2-11/64 in
Pressure	22 to 120 PSI psi
Lubrication	Not Required
Power Connection	DIN / LED Connector
Insulation Material	Class F
Type	5 Port 2 Position
Width	5/64 in
Length	3-29/32 in
Brand	Bimba-Mead
