Name: Bimba-Mead Shutoff/Relief Valve MGZ200-06-T, 1/8&quot; NPT, 1/4&quot; NPT Exh, Bracket
SKU: Bimba-Mead WBB572037
Availability: InStock

New

Bimba-Mead Shutoff/Relief Valve MGZ200-06-T, 1/8" NPT, 1/4" NPT Exh, Bracket

Original price was: $46.95.Current price is: $32.87.

SKU: Bimba-Mead WBB572037 Categories: Directional Control Valves, Pneumatic System Components, Valves Tags: 215 PSI psi, 3-Port, 2-Position, Bimba-Mead, Cast Zinc, Motors & Power Transmission, Operation Angle: 90°, Rotated Knob, Solenoid Control

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

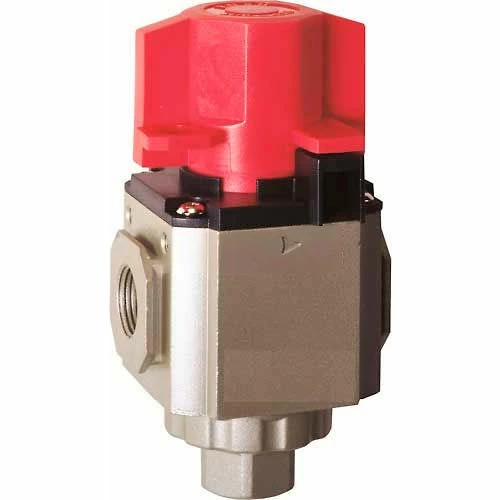

Bimba-Mead Shutoff/Relief Valve MGZ200-06-T, 1/8″ NPT, 1/4″ NPT Exh, Bracket

Pneumatic manual shut-off pressure relief valves are 3-port, 2-position valves used to shut off upstream pressure and relieve downstream pressure. The manually rotated knob can be locked out with the included padlock. Mounting bracket included for stand-alone applications.

Port Size	1/8 NPT in
Pressure	0-130 PSI psi
Media	Air
Manufacturers Part Number	MGZ200-06-T
Description	3 Port, 2 Position Relief Valve
Valve Type	3 Port, 2 Position
Ambient Operating Temperature Range	41-140° F °F
Filtration	Not Required mic
Fluid	Air
Temperature Range	41-140 °F
Lubrication	Not Required
Height	3-1/2 in
Pressure Range	0 to 130 PSI psi
Proof Pressure	215 PSI psi
Acting Type	Solenoid Control
Operating Angle	Operation Angle: 90°
Body Material	Cast Zinc
Actuator	Rotated Knob
Type	3-Port, 2-Position
Width	1-55/64 in
Length	2-5/64 in
Brand	Bimba-Mead
