Name: Bimba-Mead Shutoff/Relief Valve MGZ300-10-T, 3/8&quot; NPT, Bracket
SKU: Bimba-Mead WBB572038
Availability: InStock

New

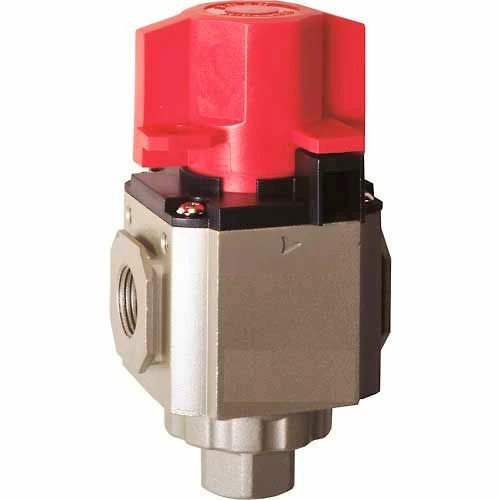

Bimba-Mead Shutoff/Relief Valve MGZ300-10-T, 3/8" NPT, Bracket

Original price was: $56.95.Current price is: $39.87.

SKU: Bimba-Mead WBB572038 Categories: Directional Control Valves, Pneumatic System Components, Valves Tags: 215 PSI psi, 3-Port, 2-Position, Bimba-Mead, Motors & Power Transmission, Not Required, Operation Angle: 90°, Rotated Knob, Solenoid Control

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

Bimba-Mead Shutoff/Relief Valve MGZ300-10-T, 3/8″ NPT, Bracket

Pneumatic manual shut-off pressure relief valves are 3-port, 2-position valves used to shut off upstream pressure and relieve downstream pressure. The manually rotated knob can be locked out with the included padlock. Mounting bracket included for stand-alone applications.

Port Size	3/8 NPT in
Temperature Range	41-140 °F
Media	Air
Manufacturers Part Number	MGZ300-10-T
Description	3 Port, 2 Position Relief Valve
Valve Type	3 Port, 2 Position
Ambient Operating Temperature Range	41-140° F °F
Filtration	Not Required mic
Fluid	Air
Pressure	0-130 PSI psi
Height	4-7/16 in
Lubrication	Not Required
Proof Pressure	215 PSI psi
Acting Type	Solenoid Control
Operating Angle	Operation Angle: 90°
Actuator	Rotated Knob
Type	3-Port, 2-Position
Width	2-23/64 in
Length	2-51/64 in
Brand	Bimba-Mead
