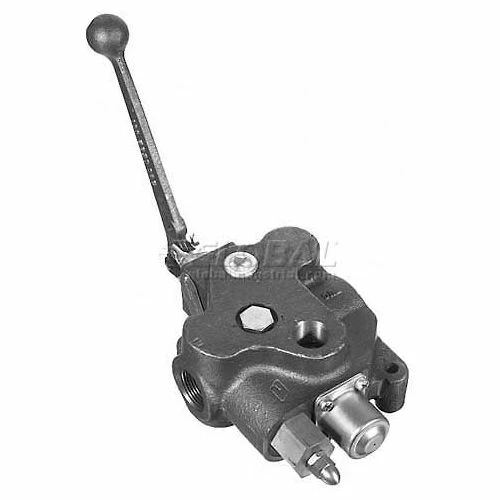

Name: Buyers Products Buyers Directional Control Valve, HV13AGOOD0, 1 Spool, 3 Way Spool Action
SKU: Buyers Products WBB922682
Availability: InStock

New

Buyers Products Buyers Directional Control Valve, HV13AGOOD0, 1 Spool, 3 Way Spool Action

Original price was: $269.95.Current price is: $94.99.

SKU: Buyers Products WBB922682 Categories: Directional Control Valves, Pneumatic System Components, Valves Tags: 1, 3 Way - Spring Center, Buyers Products, HV13AGOOD0, Motors & Power Transmission, None

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

Buyers Directional Control Valve, HV13AGOOD0, 1 Spool, 3 Way Spool Action

Number of Spools 1,2,3

Rated Working Pressure 2500 PSI (172 bar)

Max. Shock and Surge Pressure 4000 PSI (276 bar)

Rated Flow Capacity 30 GPM (114 l/m)

Max. Spool Leakage (1000 PSI) 16 cc/min

Mounting, Any Position 3 Mounting Holes for 3?8″ Bolts

Weight 1 Spool: 13 lbs.; 2 Spool: 21 lbs.; 3 Spool: 33 lbs. Standard Features

Integral load holding check valves (prevents reverse flow through valve when shifting)

Integral differential poppet type relief valve, adjustable (set @ 2000 PSI, 10 GPM)

Balanced, select-fit spools (provide minimum leakage, smooth operation)

External spool seals (permit easy replacement, educed maintenance cost)

In/Out 1-1/16″ #12 SAE; Work Ports 1-1/16″ #12 SAE or 3/4″-16 #8 SAE Optional Features Available

Power Beyond (permits use of neutral flow at system pressure); also permits field conversion from closed center to open center (tandem) operation

Air Operated – AS1

Cable Operated: Cable Connection Kit B302890 Text Definitions

3 Way = Power Up, Gravity Down

4 Way = Power Up, Power Down

3 Position = Spool / Handle has 3 positions: Up/Neutral/Down

Spring Centered = Spool returns to neutral when operator releases

Detent = Valve Spool stays in position until changed by operator Air Cylinder Converts valve from manual to air operated). Cable Connection Kit (Converts valve from manual to cable operated) Other Valves available. Contact customer service with your requirements.

Port Size	All – 1-1/16 #12 SAE in
Weight	13.08 lbs
Spool Action	3 Way – Spring Center
Manufacturers Part Number	HV13AGOOD0
Power Beyond	None
Number of Spools	1
Brand	Buyers Products
