Name: Cejn&#174; Hydraulic Flat Face Coupling (ISO 16028) 3/8&quot; Body Size 1/2&quot; Female NPT
SKU: Cejn WBB899160
Availability: InStock

New

Cejn® Hydraulic Flat Face Coupling (ISO 16028) 3/8" Body Size 1/2" Female NPT

Original price was: $29.95.Current price is: $20.97.

SKU: Cejn WBB899160 Categories: Hoses & Connectors, Pneumatic System Components, Quick Connect Couplings Tags: -22 +212 °F, 1/2 Female NPT, 11.6 gal/min, 365, Cejn, Hydraulic Flat Face Coupling, ISO 16028 (3/8), Motors & Power Transmission

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

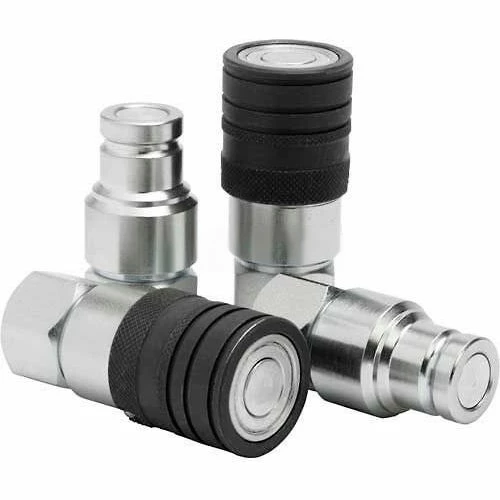

Cejn® ISO 16028 Coupler, 3/8″ Body Size, 1/2″ NPT Female

Cejn® Series 365 is a Flat-Face quick-connect coupling according to and exceeding the ISO 16028 Standard for low and medium pressure hydraulic applications. The Flat-Face design minimizes spillage during connection and disconnection. Series 365 couplings require only one hand for operation, making connection and disconnection fast and easy. Series 365 couplings feature manual security locking as added protection against involuntary disconnection. *Flat-Face Design *One-hand Operation *Extra Locking Security

Nominal Flow Diameter	3/8 in
Min Burst Pressure	17404 psi
Brand	Cejn
Respirator Connection Type	1/2 Female NPT
PSI	5801 psi
Manufacturers Part Number	10-365-1405
Max Operating PSI	5801 psi
Description	Flat-Face Quick Connect Coupler
Material	Zinc-Nickel Plated Steel
Body Size	3/8 in
Seal Material	NBR
Temperature Range	-22 +212 °F
Style	Hydraulic Flat Face Coupling
Gallons per Minute	11.6 gal/min
Connection Configuration	1/2 Female NPT
Series	365
Interchange	ISO 16028 (3/8)
Certifications	ISO 16028 (3/8)
