Name: Igus&#174; CAPU-I-04 Chainflex&#174; PUR Pneumatic Air Hose, 0.38&quot; OD, 0.25&quot; ID, 150 PSI
SKU: igus WBB1876576
Availability: InStock

New

Igus® CAPU-I-04 Chainflex® PUR Pneumatic Air Hose, 0.38" OD, 0.25" ID, 150 PSI

Original price was: $1.02.Current price is: $0.71.

SKU: igus WBB1876576 Categories: Hoses, Hoses & Connectors, Pneumatic System Components Tags: 150 psi, 28" Hg, Blue, CAPU-I-04, Igus, Motors & Power Transmission, Moving = -13 to +158, ixed = -40 to +158 °F, Polyurethane

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

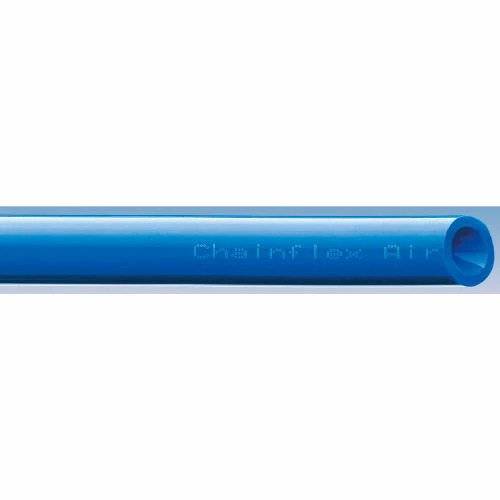

Igus® CAPU-I-04 Chainflex® PUR Pneumatic Air Hose, 0.38″ OD, 0.25″ ID, 150 PSI

Igus® Chainflex® Air pneumatic hoses have been tested successfully in cable carriers through more than 10 million bending cycles, at bend radii below the recommended minimum. They are optimized for excellent flexibility and wear resistance in continuous-flex cable carrier applications. They are also very resistant to oils and coolants.

Min Bend Radius	3.8 in
Hose Inside Diameter	0.25 in
Wall Thickness	0.06 in
Hose Outside Diameter	0.38 in
Temperature Range	Moving = -13 to +158, ixed = -40 to +158 °F
Max Vacuum	28" Hg
Material	Polyurethane
Hose Color Family	Blue
Manufacturers Part Number	CAPU-I-04
Pressure Rating	150 PSI
Brand	igus
