Name: Milton 1717-6 M Style Industrial Push On and Lock Coupler 3/8&quot; Hose Barb 10 Pack
SKU: Milton WBB2222062
Availability: InStock

New

Milton 1717-6 M Style Industrial Push On and Lock Coupler 3/8" Hose Barb 10 Pack

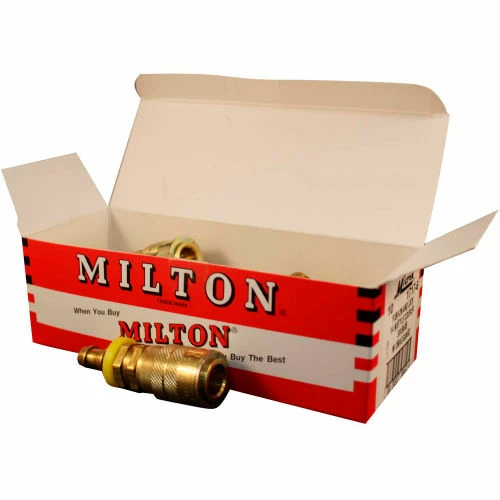

Milton 1717-6 M Style Industrial Push On and Lock Coupler 3/8" Hose Barb 10 Pack - Image 2

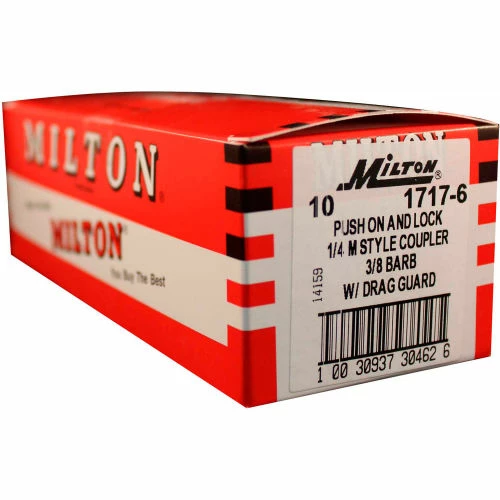

Milton 1717-6 M Style Industrial Push On and Lock Coupler 3/8" Hose Barb 10 Pack - Image 3

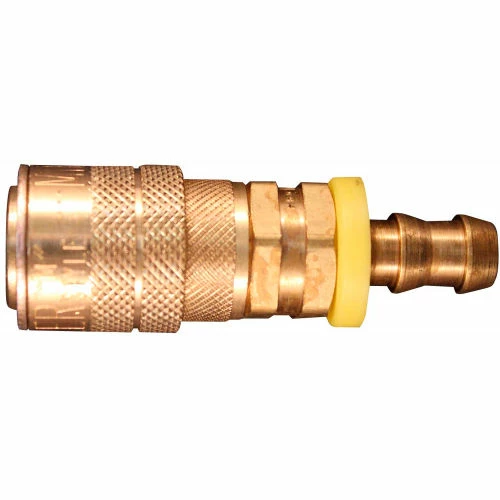

Milton 1717-6 M Style Industrial Push On and Lock Coupler 3/8" Hose Barb 10 Pack - Image 4

Original price was: $102.95.Current price is: $72.07.

SKU: Milton WBB2222062 Categories: Hoses & Connectors, Pneumatic System Components, Quick Connect Couplings Tags: 3/8" Hose Barb, 40 CFM, Industrial 1/4" body, M-Style, Milton, Motors & Power Transmission, Steel, Yes

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

Milton 1717-6 M Style Industrial Push On and Lock Coupler 3/8″ Hose Barb 10 Pack

These couplers feature a steel drag guard to prevent accidental uncoupling. M style couplers offer a basic flow size of 1/4″ and have a maximum inlet pressure of 300 PSI. Designed specifically for Milton push on and lock on air hoses these hose barbs require no clamps or ferrules; simply push the fitting in. Brass body with a Buna-N seal.

Nominal Flow Diameter	1/4 in
Weight	0.239 lbs
Height	0.93 in
Length	2.77 in
Width	0.93 in
Interchange	Industrial 1/4" body
CFM	40 CFM
Connection Configuration	3/8" Hose Barb
Style	M-Style
Material	Steel
Made in the USA	Yes
Package Quantity	10
Max Operating PSI	300 psi
Manufacturers Part Number	1717-6
Brand	Milton
