Name: Milton S-217 V Style High Flow Coupler and Plug Kit 6 piece 6 Pack
SKU: Milton WBB2222026
Availability: InStock

New

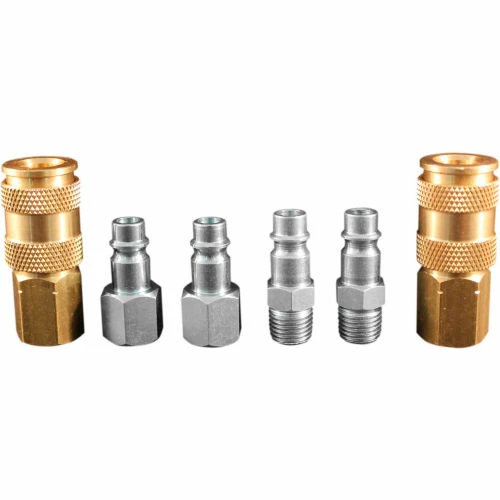

Milton S-217 V Style High Flow Coupler and Plug Kit 6 piece 6 Pack

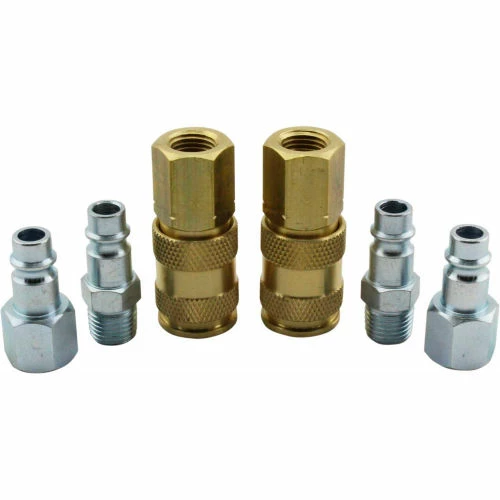

Milton S-217 V Style High Flow Coupler and Plug Kit 6 piece 6 Pack - Image 2

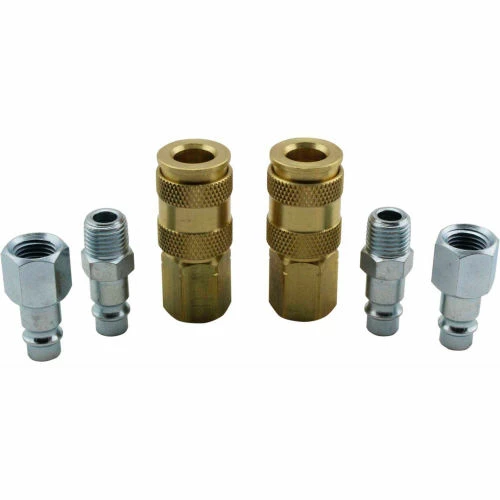

Milton S-217 V Style High Flow Coupler and Plug Kit 6 piece 6 Pack - Image 3

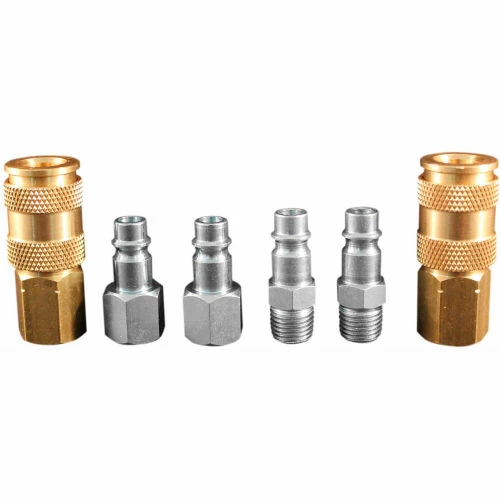

Milton S-217 V Style High Flow Coupler and Plug Kit 6 piece 6 Pack - Image 4

Original price was: $43.95.Current price is: $30.77.

SKU: Milton WBB2222026 Categories: Hoses & Connectors, Pneumatic System Components, Quick Connect Couplings Tags: 1/4" NPT, 74 CFM, Brass, European High Flow 1/4" body, Milton, Motors & Power Transmission, No, V-Style Kit

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

Milton S-217 V Style High Flow Coupler and Plug Kit 6 piece 6 Pack

This six piece V style high flow coupler and plug kit includes various coupler and plugs with a 1/4″ basic flow size. Milton V style plugs will accept M style and A style plugs however to retain maximum flow only use V style couplers and plugs together. These V style couplers are made of brass while the plugs are made of steel. Kit includes two 1/4″ MNPT plugs two 1/4″ FNPT plugs and two 1/4″ FNPT couplers. V style couplers and plugs offer a maximum pressure of 300 PSI and air flow of 74 SCFM.

Nominal Flow Diameter	1/4 in
Weight	0.656 lbs
Height	5 in
Length	11 in
Width	7 in
Interchange	European High Flow 1/4" body
CFM	74 CFM
Connection Configuration	1/4" NPT
Style	V-Style Kit
Material	Brass
Made in the USA	No
Package Quantity	6
Max Operating PSI	300 psi
Manufacturers Part Number	S-217
Brand	Milton
