Name: Milton s-764 V Style High Flow Coupler 1/4&quot; FNPT
SKU: Milton WBB2221990
Availability: InStock

New

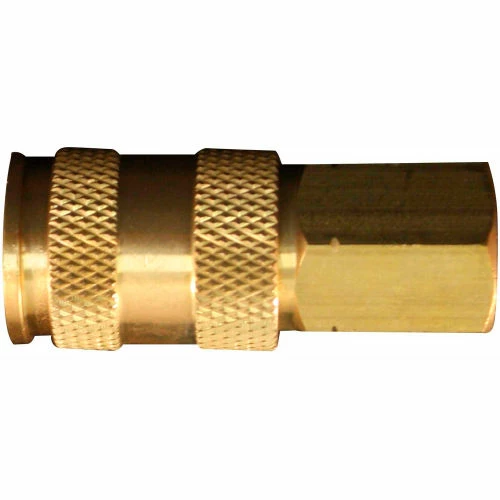

Milton s-764 V Style High Flow Coupler 1/4" FNPT

Original price was: $26.95.Current price is: $18.87.

SKU: Milton WBB2221990 Categories: Hoses & Connectors, Pneumatic System Components, Quick Connect Couplings Tags: 1/4 Female NPT, 74 CFM, Brass, European High Flow 1/4" body, Milton, Motors & Power Transmission, No, V-Style

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

Milton s-764 V Style High Flow Coupler 1/4″ FNPT

1/4″ FNPT high flow V style couplers will accept A M and V style plugs however to retain maximum air flow use V style plugs. Sleeve release is a push type and is easy to use; simply push plug into coupler to engage pull sleeve back to remove. Perfect for high volume low pressure applications. V style couplers have a 1/4″ basic flow size and a maximum pressure of 300 PSI.

Nominal Flow Diameter	1/4 in
Weight	0.235 lbs
Height	0.94 in
Length	2.13 in
Width	0.94 in
Interchange	European High Flow 1/4" body
CFM	74 CFM
Connection Configuration	1/4" Female NPT
Style	V-Style
Material	Brass
Made in the USA	No
Package Quantity	1
Max Operating PSI	300 psi
Manufacturers Part Number	s-764
Brand	Milton
