Name: Milton s-766 V Style High Flow Coupler 3/8&quot; FNPT
SKU: Milton WBB2221991
Availability: InStock

New

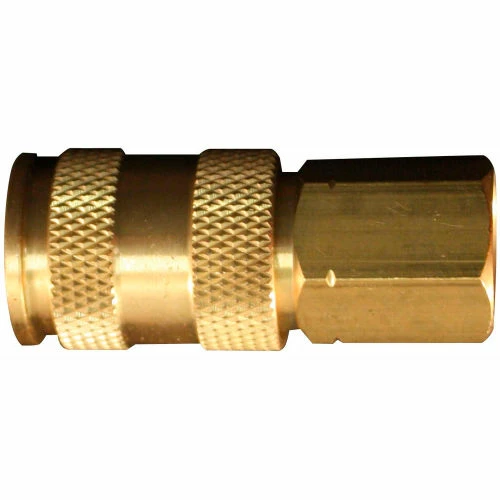

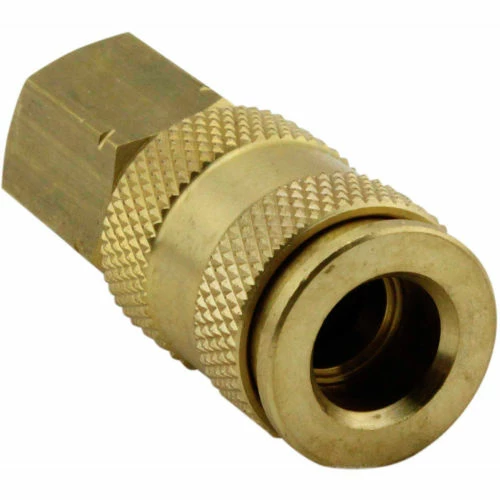

Milton s-766 V Style High Flow Coupler 3/8" FNPT

Milton s-766 V Style High Flow Coupler 3/8" FNPT - Image 2

Milton s-766 V Style High Flow Coupler 3/8" FNPT - Image 3

Original price was: $26.95.Current price is: $18.87.

SKU: Milton WBB2221991 Categories: Hoses & Connectors, Pneumatic System Components, Quick Connect Couplings Tags: 3/8" FNPT, 74 CFM, Brass, European High Flow 1/4" body, Milton, Motors & Power Transmission, No, V-Style

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

Milton s-766 V Style High Flow Coupler 3/8″ FNPT

High flow 3/8″ FNPT V style coupler has a push type sleeve release; simply push plug into coupler to engage pull sleeve back to remove. Perfect for high volume low pressure applications. Milton V style couplers will also accept M Style and A Style plugs however to retain maximum flow use Milton V style plugs.

Nominal Flow Diameter	1/4 in
Weight	0.214 lbs
Height	0.94 in
Length	2.13 in
Width	0.94 in
Interchange	European High Flow 1/4" body
CFM	74 CFM
Connection Configuration	3/8" FNPT
Style	V-Style
Material	Brass
Made in the USA	No
Package Quantity	1
Max Operating PSI	300 psi
Manufacturers Part Number	s-766
Brand	Milton
