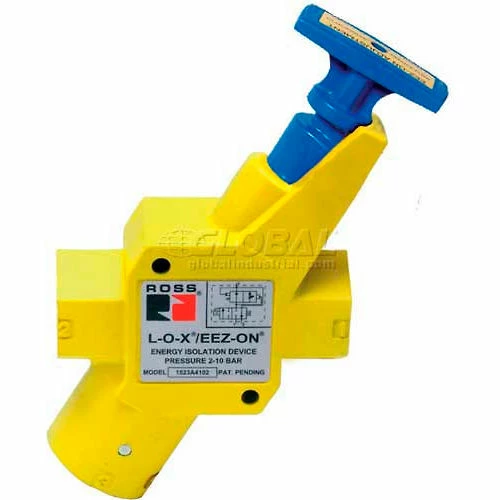

Name: ROSS&#174; Manual Pneumatic Lockout Valve With Soft Start YD1523B6102, 1&quot; BSPP
SKU: Ross WBB837092
Availability: InStock

New

ROSS® Manual Pneumatic Lockout Valve With Soft Start YD1523B6102, 1" BSPP

Original price was: $242.95.Current price is: $97.99.

SKU: Ross WBB837092 Categories: Directional Control Valves, Pneumatic System Components, Valves Tags: 12.0 Cv, 3/2, 30 to 150 PSI, 40° to 174°F °F, BSPP, Female, Motors & Power Transmission, Ross

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

ROSS® Manual Pneumatic Lockout Valve With Soft Start YD1523B6102, 1″ BSPP

Meets all OSHA, ANSI, CSA, and ISO requirements for lock out and tag out procedures combined with a soft start function. Valves are highly visible with yellow body and blue operating handle, have large ports that provide rapid exhaust, and have an integrated sensing port for pressure verification.

Port Size (In Out)	1 in
Port Size (Exhaust)	1-1/4 in
Thread Type	Female
Ports	BSPP
Exhaust Flow Rate	12.0 Cv
Ambient Operating Temperature Range	40° to 174°F °F
Valve Type	3/2
Inlet Pressure	30 to 150 PSI
In Out Flow Rate	13.7 Cv
Description	Manual Pneumatic Lockout Valve With Soft Start
Manufacturers Part Number	YD1523B6102
Flow Media	Filtered Air
Brand	Ross
