ROSS® Pneumatic Flush Mounted Red Push Button Valve 1223B2FPR, 1/4" NPT

Original price was: $63.95.Current price is: $44.77.

SKU: Ross WBB837068 Categories: Directional Control Valves, Pneumatic System Components, Valves Tags: 12, 3/2, 40° to 174°F °F, 5 to 150 PSI, Female, Motors & Power Transmission, NPT, Ross

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

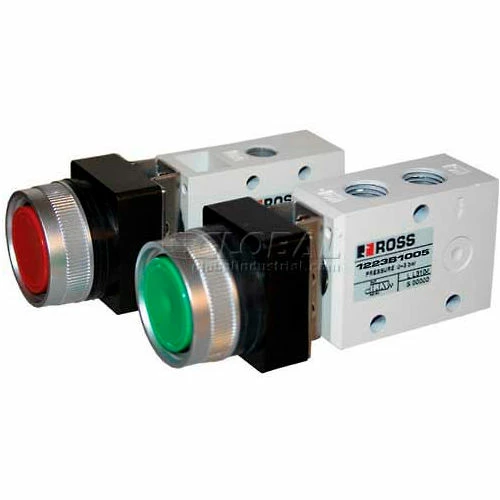

ROSS® Pneumatic Flush Mounted Red Push Button Valve 1223B2FPR, 1/4″ NPT

Flush Head pushbuttons are used to prevent accidental operation or provide flat panel appearance. These push button valves are spring return and can be used for both normally open and normal closed operations.

Port Size (In Out)	1/4 in
Height	3-29/32 in
Length	1-39/64 in
Width	1 in
Thread Type	Female
Ports	NPT
Series	12
Ambient Operating Temperature Range	40° to 174°F °F
Valve Type	3/2
Inlet Pressure	5 to 150 PSI
In Out Flow Rate	0.9 Cv
Description	Pneumatic Flush Mounted Push Button Valve
Manufacturers Part Number	1223B2FPR
Flow Media	Filtered Air
Brand	Ross
