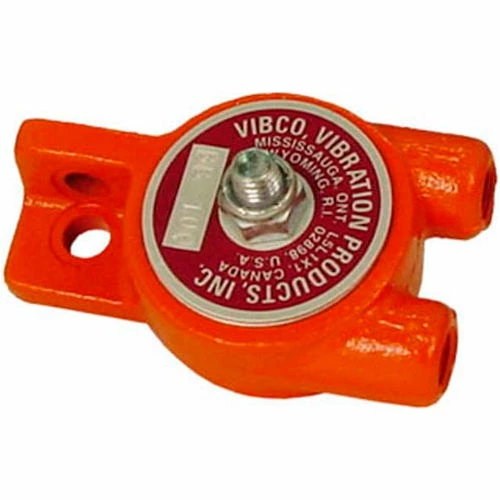

BB Series are dual mount vibrators designed for applications requiring small to medium amounts of vibration. Thread exhaust port allows for porting air to remote location if neccessary. 60 PSI max operating pressure, 24000 VPM, at 6 CFM of air with 55 lbs of force. Ball style vibrators must have a filter regulator and lubricator for proper operation. Exhaust mufflers available also for quieter operation.
| Dimension A | 0.5 in |
|---|---|
| Inlet | 1/8-NPT |
| Force Newtons | 245 N |
| Speed VPM @ 20 PSI | 17000 |
| Outlet | 1/8" NPT |
| CFM @ 20 PSI | 2 CFM |
| Enclosure Type | Totally Enclosed |
| Adjustable Speed Option | Yes |
| Series | BB |
| CFM @ 60 PSI | 6 CFM |
| Brand | Vibco Vibrators |
| Manufacturers Part Number | BB-100 |
| Material | Cast Iron Threaded Exhaust |
| Max Weight Material in Bin | 550 lbs |
| SpeedVPM @ 60 PSI | 24000 |
| Speed VPM @ 40 PSI | 20000 |
| CFM @ 40 PSI | 4 CFM |
| Width | 3.25 in |
| Length | 1.5625 in |
| Force Weight | 55 lbs |
| Dimension G | 1.125 in |
| Height | 2 in |
| Dimension S | 1 in |
| Dimension C | 0.3125 in |
| Dimension F | 0.3125 in |
| Decibels | 75 |
