Name: Vibco Vibrators Vibco Pneumatic Ball Vibrator - BV-130
SKU: Vibco Vibrators WBB261295
Availability: InStock

New

Vibco Vibrators Vibco Pneumatic Ball Vibrator - BV-130

Vibco Vibrators Vibco Pneumatic Ball Vibrator - BV-130 - Image 2

Original price was: $165.95.Current price is: $94.99.

SKU: Vibco Vibrators WBB261295 Categories: Pneumatic Vibrators, Vibrators Tags: 1/8-NPT, 15000, 19000, 5 CFM, BV-130, Cast Iron Threaded Exhaust, Motors & Power Transmission, Vibco Vibrators

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

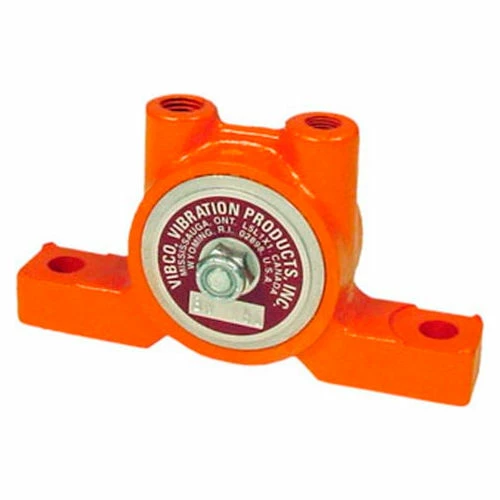

Vibco Pneumatic Ball Vibrator – BV-130

BV series are foot mount Ball style vibrators, designed for applications requiring small amounts of vibration. Threaded exhaust port allows for porting air to remote location if neccessary. 60 PSI max. operating pressure, 19000 VPM, at 7.5 CFM of air with 80 lbs of force. Ball style vibrators must have a filter regulator and lubricator for proper operation. Exhaust mufflers available also for quieter operation.

Dimension A	4 in
Inlet	1/8-NPT
Force Newtons	356 N
Speed VPM @ 20 PSI	12000
Outlet	1/4" NPT
CFM @ 20 PSI	2 CFM
Enclosure Type	Totally Enclosed
Adjustable Speed Option	Yes
Series	BV
CFM @ 60 PSI	7.5 CFM
Brand	Vibco Vibrators
Manufacturers Part Number	BV-130
Material	Cast Iron Threaded Exhaust
Dimension R	0.875 in
SpeedVPM @ 60 PSI	19000
Speed VPM @ 40 PSI	15000
CFM @ 40 PSI	5 CFM
Width	4.875 in
Length	1.9375 in
Force Weight	80 lbs
Dimension G	1.4375 in
Height	2.75 in
Dimension C	0.375 in
Dimension F	0.75 in
Max Weight Material in Bin	800 lbs
Decibels	76
