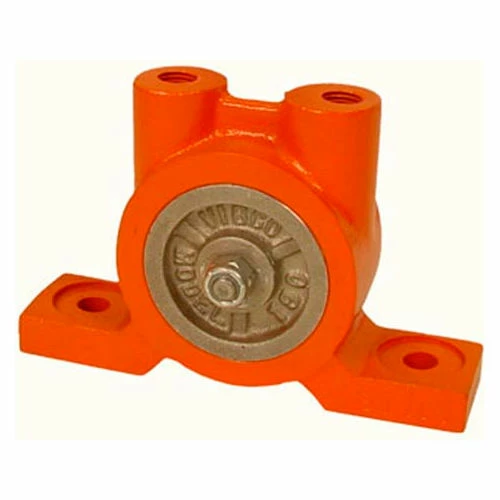

Vibco Pneumatic Ball Vibrator – BV-190

BV series are dual mount Ball style vibrators, designed for applications requiring medium amounts of vibration. Threaded exhaust port allows for porting air to remote location if necessary. 80 PSI max. operating pressure, 16000 VPM, at 11 CFM of air, with 260 lbs of force. Ball style vibrators must have a filter regulator and lubricator for proper operation. Exhaust mufflers are available for quieter operation.

Dimension A	4 in
Speed VPM @ 80 PSI	16000
Force Newtons	1157 N
Outlet	1/4" NPT
Enclosure Type	Totally Enclosed
CFM @ 80 PSI	11 CFM
Adjustable Speed Option	Yes
Series	BV
CFM @ 60 PSI	10 CFM
Brand	Vibco Vibrators
Manufacturers Part Number	BV-190
Inlet	1/4-NPT
Material	Cast Iron Threaded Exhaust
Dimension R	1.25 in
SpeedVPM @ 60 PSI	14000
Speed VPM @ 40 PSI	12000
CFM @ 40 PSI	6 CFM
Width	5.5 in
Length	2.25 in
Force Weight	260 lbs
Dimension G	1.875 in
Height	3.5625 in
Dimension C	0.375 in
Dimension F	40437 in
Max Weight Material in Bin	2600 lbs
Decibels	77
