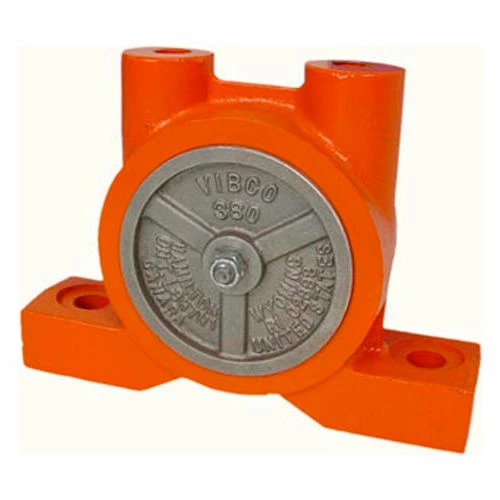

Vibco Pneumatic Ball Vibrator – BV-380

BV series are foot mount Ball style vibrators, designed for applications requiring medium amounts of vibration. Threaded exhaust port allows for porting air to remote location if necessary. 80 PSI max. operating pressure, 6500 VPM, at 20 CFM of air, with 600 lbs of force. Ball style vibrators must have a filter regulator and lubricator for proper operation. Exhaust mufflers are available for quieter operation.

Dimension A	6 in
Speed VPM @ 80 PSI	6500
Force Newtons	2669 N
Outlet	3/8" NPT
Enclosure Type	Totally Enclosed
CFM @ 80 PSI	20 CFM
Adjustable Speed Option	Yes
Series	BV
CFM @ 60 PSI	15 CFM
Brand	Vibco Vibrators
Manufacturers Part Number	BV-380
Inlet	3/8-NPT
Material	Cast Iron Threaded Exhaust
Dimension R	2 in
SpeedVPM @ 60 PSI	6200
Speed VPM @ 40 PSI	5500
CFM @ 40 PSI	10 CFM
Width	7.875 in
Length	2.9375 in
Force Weight	600 lbs
Dimension G	.2 13/16 in
Height	5.75 in
Dimension C	0.625 in
Dimension F	1.125 in
Max Weight Material in Bin	6000 lbs
Decibels	82
