Name: Vibco Vibrators Vibco Pneumatic Ball Vibrator - V-320
SKU: Vibco Vibrators WBB261308
Availability: InStock

New

Vibco Vibrators Vibco Pneumatic Ball Vibrator - V-320

Vibco Vibrators Vibco Pneumatic Ball Vibrator - V-320 - Image 2

Original price was: $261.95.Current price is: $97.99.

SKU: Vibco Vibrators WBB261308 Categories: Pneumatic Vibrators, Vibrators Tags: 10000, 12 CFM, 3/8-NPT, 7500, 8900, Cast Iron Threaded Exhaust, Motors & Power Transmission, Vibco Vibrators

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

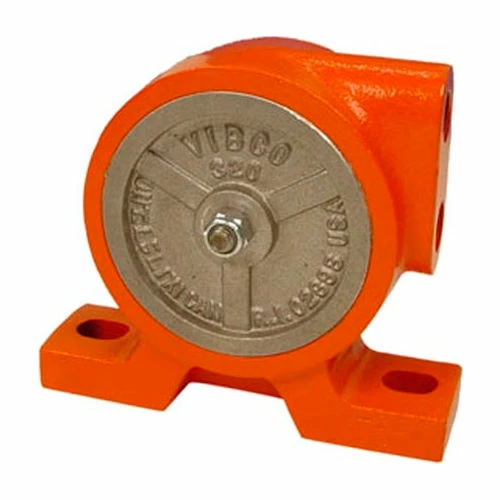

Vibco Pneumatic Ball Vibrator – V-320

V series are foot mount Ball style vibrators, designed for applications requiring medium amounts of vibration. Threaded exhaust port allows for porting air to remote location if necessary. 80 PSI max operating pressure, 10000 VPM, at 17 CFM of air, with 650 lbs of force. Ball style vibrators must have a filter regulator and lubricator for proper operation. Exhaust mufflers are available for quieter operation.

Dimension K	4.125 in
Material	Cast Iron Threaded Exhaust
Force Newtons	2892 N
Outlet	3/8" NPT
Enclosure Type	Totally Enclosed
CFM @ 80 PSI	17 CFM
Adjustable Speed Option	Yes
Series	V
CFM @ 60 PSI	14 CFM
Brand	Vibco Vibrators
Manufacturers Part Number	V-320
Inlet	3/8-NPT
Speed VPM @ 80 PSI	10000
SpeedVPM @ 60 PSI	8900
Dimension A	4 in
Speed VPM @ 40 PSI	7500
CFM @ 40 PSI	12 CFM
Width	5.5625 in
Length	2.75 in
Force Weight	650 lbs
Dimension G	1.375 in
Height	4.875 in
Dimension C	0.5 in
Dimension F	0.75 in
Max Weight Material in Bin	6500 lbs
Dimension R	1.5 in
Decibels	78
