Name: Vibco Vibrators Vibco Pneumatic End Mounted Piston Vibrator - 10-1-1/4
SKU: Vibco Vibrators WBB261164
Availability: InStock

New

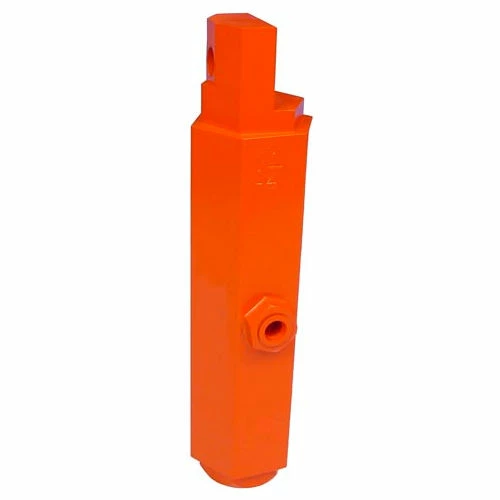

Vibco Vibrators Vibco Pneumatic End Mounted Piston Vibrator - 10-1-1/4

Vibco Vibrators Vibco Pneumatic End Mounted Piston Vibrator - 10-1-1/4 - Image 2

Original price was: $279.95.Current price is: $97.99.

SKU: Vibco Vibrators WBB261164 Categories: Pneumatic Vibrators, Vibrators Tags: 4000, 5 CFM, 7 CFM, 9 CFM, Model 10, Motors & Power Transmission, Vibco Vibrators, Yes

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

Vibco Pneumatic End Mounted Piston Vibrator – 10-1-1/4

Model 10 series pistons, single attaching head, 80 PSI max operating pressure, 7000 VPM, 9 CFM Lubricated air is mandatory for proper opertion of all piston type vibrators.

Dimension C	0.5 in
CFM @ 80 PSI	9 CFM
Manufacturers Part Number	10-1-1/4
Inlet	1/4-NPT
Speed VPM @ 80 PSI	7000
Material	Steel End Mount
SpeedVPM @ 60 PSI	5500
Enclosure Type	Totally Enclosed
Adjustable Speed Option	Yes
Dimension A	0.6875 in
Speed VPM @ 40 PSI	4000
Series	Model 10
CFM @ 40 PSI	5 CFM
CFM @ 60 PSI	7 CFM
Width	2.25 in
Max Weight Material in Bin	400-1000 lbs
Height	9.25 in
Brand	Vibco Vibrators
