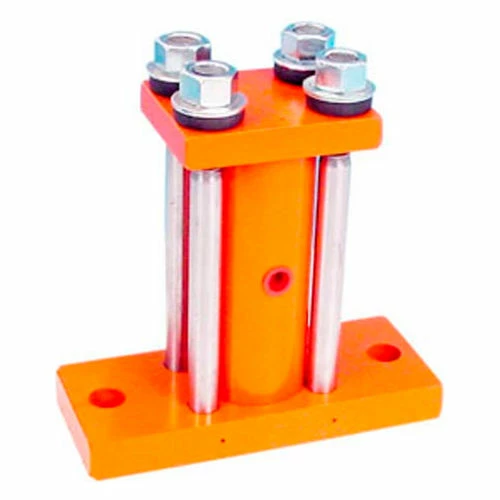

Vibco Pneumatic Piston Vibrator – 50-1-1/2

50 series Piston Vibrator, impacting style. Heavy-duty three piece steel construction. Max operating pressure 80 PSI, 5200 VPM, at 11 CFM of air. All piston style vibrators must have a filter, regulator, and lubricator for proper operation. .

Dimension F	0.875 in
Speed VPM @ 40 PSI	2800
Manufacturers Part Number	50-1-1/2
Inlet	1/4-NPT
Speed VPM @ 80 PSI	5200
Material	Steel Foot Mount
SpeedVPM @ 60 PSI	4000
Enclosure Type	Totally Enclosed
CFM @ 80 PSI	11 CFM
Adjustable Speed Option	Yes
Series	Model 50
Dimension C	0.75 in
CFM @ 40 PSI	6.5 CFM
CFM @ 60 PSI	9 CFM
Length	7.5 in
Width	3 in
Max Weight Material in Bin	1000-4000 lbs
Height	7.9375 in
Dimension A	6 in
Dimension S	0.28125 in
Brand	Vibco Vibrators
