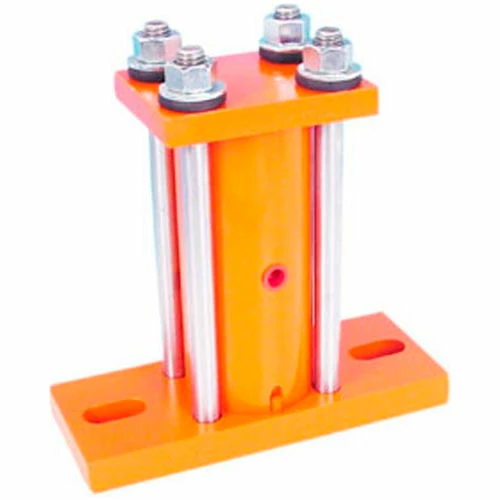

Vibco Pneumatic Piston Vibrator – 50-2L

50 series piston, three piece steel construction. max operating pressure 80 PSI, 2400 VPM, at 31 CFM of air. All piston style vibrators must have a filter regulator and lubricator for proper operation.

Dimension F	0.875 in
Speed VPM @ 40 PSI	1600
Manufacturers Part Number	50-2L
Inlet	1/4-NPT
Speed VPM @ 80 PSI	2400
Material	Steel Foot Mount
SpeedVPM @ 60 PSI	2000
Enclosure Type	Totally Enclosed
CFM @ 80 PSI	31 CFM
Adjustable Speed Option	Yes
Series	Model 50
Dimension C	0.75 in
CFM @ 40 PSI	17 CFM
CFM @ 60 PSI	26 CFM
Length	9 in
Width	3.5 in
Max Weight Material in Bin	8000-20000 lbs
Height	9.4375 in
Dimension A	6 in
Dimension S	0.25 in
Brand	Vibco Vibrators
