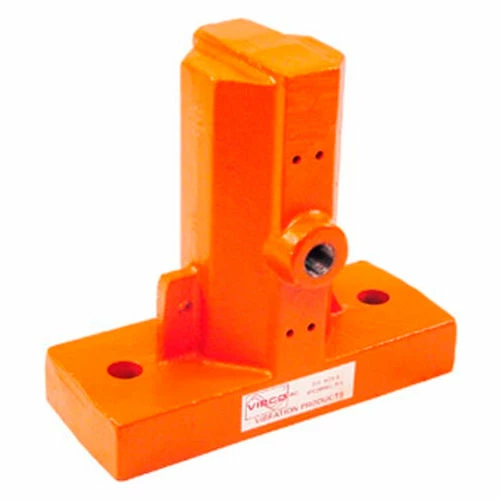

Vibco Pneumatic Piston Vibrator – 55-1-1/2S

55 Series Silent air cushioned piston vibrators, one piece cast iron design. Slotted mounting holes to accomodate a variety of competitive bolt patterns. 80 PSI max operating pressure. 3200 VPM, 11 CFM. Piston style vibrators must have filter regulator and lubricator for proper operation.

Dimension F	1.125 in
Adjustable Speed Option	Yes
Manufacturers Part Number	55-1-1/2S
Inlet	1/4-NPT
Speed VPM @ 80 PSI	3200
Material	Steel Foot Mount
SpeedVPM @ 60 PSI	2400
Enclosure Type	Totally Enclosed
CFM @ 80 PSI	11 CFM
Speed VPM @ 40 PSI	1700
Dimension C	0.625 in
Series	Model 55
CFM @ 40 PSI	6.5 CFM
CFM @ 60 PSI	9 CFM
Length	9 in
Width	3.5 in
Max Weight Material in Bin	400-1000 lbs
Height	7.25 in
Dimension A	7.5 in
Brand	Vibco Vibrators
