Name: Vibco Vibrators Vibco Pneumatic Piston Vibrator - 55-1-1/4S
SKU: Vibco Vibrators WBB261285
Availability: InStock

New

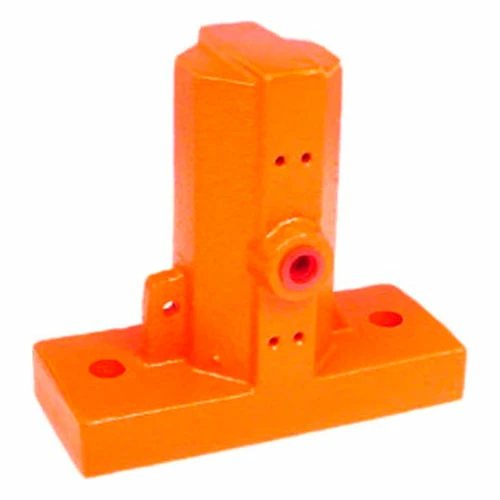

Vibco Vibrators Vibco Pneumatic Piston Vibrator - 55-1-1/4S

Vibco Vibrators Vibco Pneumatic Piston Vibrator - 55-1-1/4S - Image 2

Original price was: $223.95.Current price is: $98.99.

SKU: Vibco Vibrators WBB261285 Categories: Pneumatic Vibrators, Vibrators Tags: 2400, 5 CFM, 7 CFM, 9 CFM, Model 55, Motors & Power Transmission, Vibco Vibrators, Yes

Quality You Can Count On
Control the delivery date and try to deliver it in the fastest time
Unbeatable Quality Guaranteed
Reliable Payments for Reliable Shopping

Vibco Pneumatic Piston Vibrator – 55-1-1/4S

55 Series Silent air cushioned piston vibrators, one piece cast iron design. 80 PSI max operating pressure. 4200 VPM, 9 CFM. Piston style vibrators must have filter regulator and lubricator for proper operation.

Dimension F	0.875 in
Adjustable Speed Option	Yes
Manufacturers Part Number	55-1-1/4S
Inlet	1/4-NPT
Speed VPM @ 80 PSI	4200
Material	Steel Foot Mount
SpeedVPM @ 60 PSI	3300
Enclosure Type	Totally Enclosed
CFM @ 80 PSI	9 CFM
Speed VPM @ 40 PSI	2400
Dimension C	0.5 in
Series	Model 55
CFM @ 40 PSI	5 CFM
CFM @ 60 PSI	7 CFM
Width	2.5 in
Length	6 in
Max Weight Material in Bin	200-400 lbs
Height	5.625 in
Dimension A	4.5 in
Brand	Vibco Vibrators
