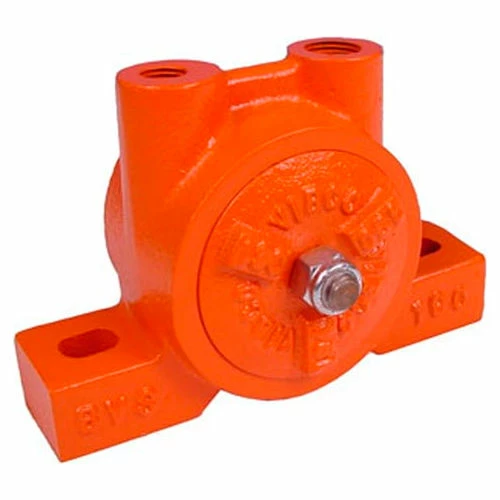

BVS series are foot mount Silent Turbine Vibrators, designed for applications requiring medium amounts of vibration. Threaded exhaust port allows for porting air to remote location if necessary. 80 PSI max. operating pressure, 7200 VPM, at 8.5 CFM, with 270 lbs of force. 71 dB. No lubrication required. A filter regulator is recommended for optimum life & performance. Exhaust mufflers are available for quieter operation.
| Dimension F | 0.875 in |
|---|---|
| CFM @ 80 PSI | 8.5 CFM |
| Decibels | 71 |
| Force Newtons | 1201 N |
| Manufacturers Part Number | BVS-190 |
| Inlet | 1/4-NPT |
| Speed VPM @ 80 PSI | 7200 |
| Material | Cast Iron Threaded Exhaust |
| Outlet | 3/8" NPT |
| SpeedVPM @ 60 PSI | 5500 |
| Enclosure Type | Totally Enclosed |
| Adjustable Speed Option | Yes |
| Dimension C | 0.375 in |
| Series | BVS |
| CFM @ 60 PSI | 7.5 CFM |
| Width | 5.25 in |
| Length | 3.1875 in |
| Max Weight Material in Bin | 2700 lbs |
| Force Weight | 270 lbs |
| Dimension R | 1.3125 in |
| Dimension G | 1.875 in |
| Height | 3.4375 in |
| Dimension A | 4 in |
| Brand | Vibco Vibrators |
